Photofinish.NET · [db]netsoft

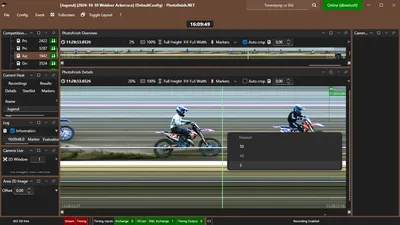

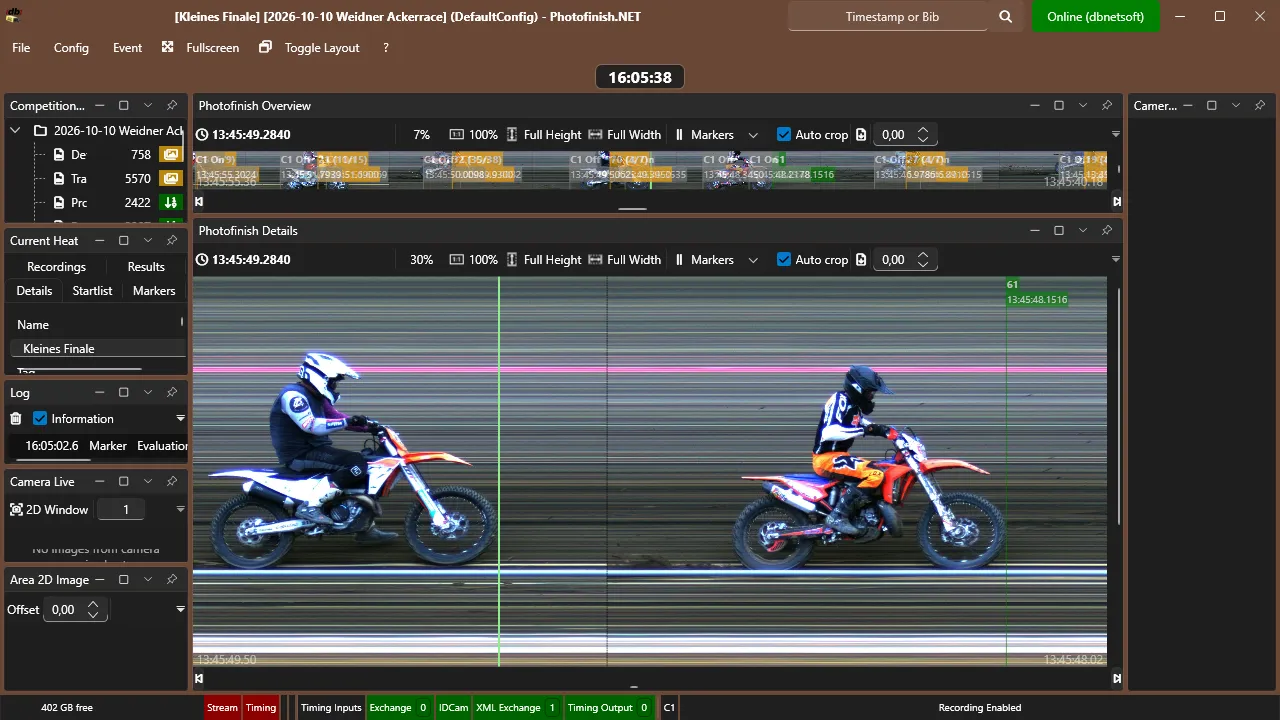

Photofinish.NET is built for ALGE-Timing OptiC3 linescan cameras, replacing and upgrading the manufacturer's own OptiC3.NET software — lighter-weight and aimed at individual or mass-start events with loosely coupled heats, rather than track-and-field.

Jersey colors, nearby-bib filtering and side-by-side IDCamPro images speed up evaluation, while road cycling gets dedicated bunch-time tools: hold Shift to see every gap to the bunch leader at once.

Markers for impulses and sticky freetext notes on each picture line
Instant bib validation against the start list, with lap count shown

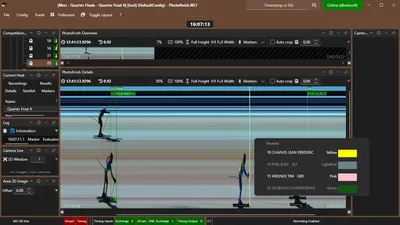

Jersey/bib colors for fast visual assignment, with double-check indicators
2D (area) images from IDCamPro, NDI, Blackmagic Decklink or any webcam, time-synced to the evaluation line
Flexible round/heat hierarchy, rearrangeable at any time
Road cycling bunch/gap times — hold Shift to see every time gap at once

How it works

ALGE-Timing OptiC3Linescan camera
Ethernet or wirelessLinescan images
[db]netsoftIDCamProCan also run on the same computer
- IP cameras
- NDI cameras
- NDI Camera app · iOS / Android
Ethernet or wireless2D images
Timing sourcesOne or more at once
- ALGE-Timing, TAG Heuer and other timing devices*
- RACE RESULT, TAG Heuer and other transponder readers*
RS232 or networkImpulses and bibs
[db]netsoftPhotofinish.NETOn your timing computer
Bibs and impulses show up on the linescan image. The start can come from a timing device, so it doesn't need to be connected to the camera.
Direct upload
RACE RESULT 14Into timing points for photofinish evaluation
