Turn-Key Software

ALGE-Timing MT1 Exchange

Middleware for MT1 devices, speaking a standard protocol downstream.

Transforms impulses from ALGE-Timing MT1 devices into a standard ALGE or TAG Heuer protocol over serial ports or ethernet, so any evaluation software on the market can use them — no need to interact with ALGE Results, and MT1s don't need to be linked to an event.

Flexible mappings define which MT1 sits at the finish (or start), and which output channel an impulse is reported on.

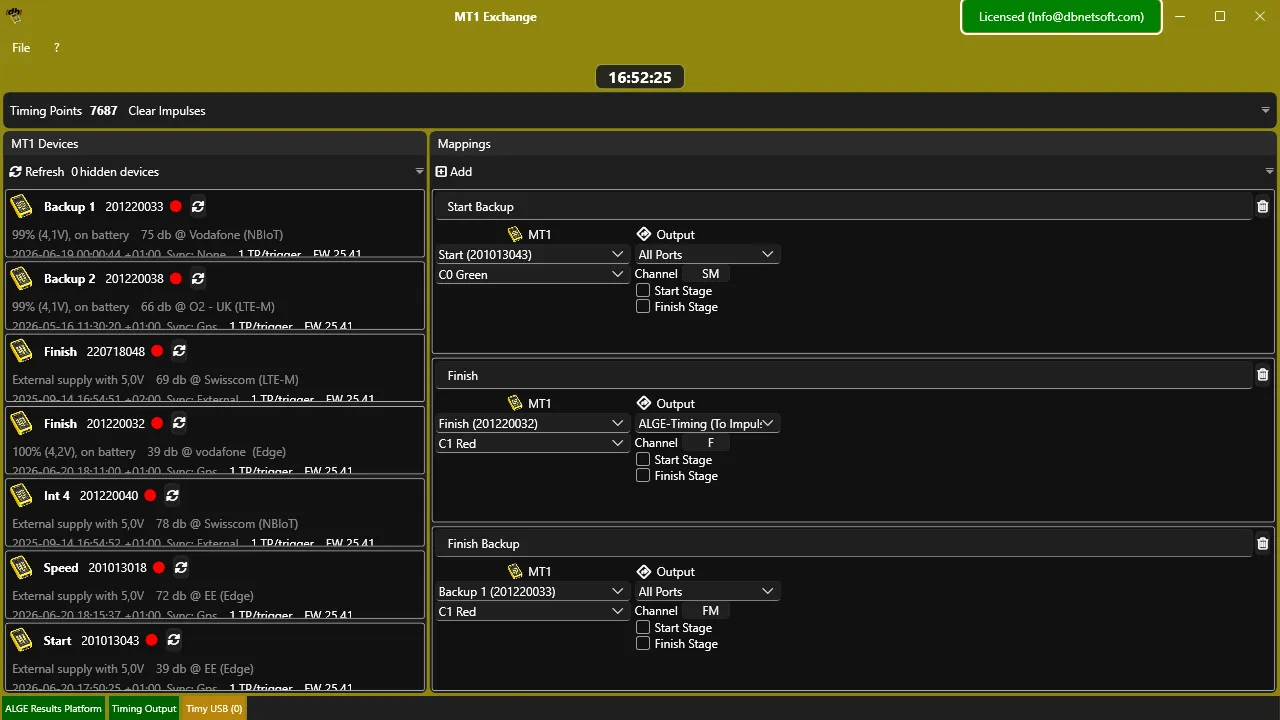

  • Live status for every MT1 on the account: last response, battery state, reception
  • Real-time keyed-in bibs and impulses, transformed for downstream timing software
  • Mapping of specific MT1 inputs to specific output channels
  • Works as ALGE or TAG Heuer protocol output — compatible with virtually any timing software
How it works
  1. ALGE-Timing MT1Impulses and keyed-in bibs
  2. GSM
  3. ALGE Results Platformalge-results.com
  4. Internet
  5. [db]netsoftMT1 ExchangeOn your timing computer
  6. ALGE / TAG HeuerRS232 or socket
  7. Traditional timing software
    • Time.NET 2
    • SplitSecond
    • VOLA
    • Any other
Works withALGE-Timing MT1 devices
Licenses
ALGE-Timing MT1 Exchange 1-Year-License product card
1-Year-License€150

Valid for one year upon purchase, tied to an ALGE-Timing Results Platform account.

← All software
